Sliding motors

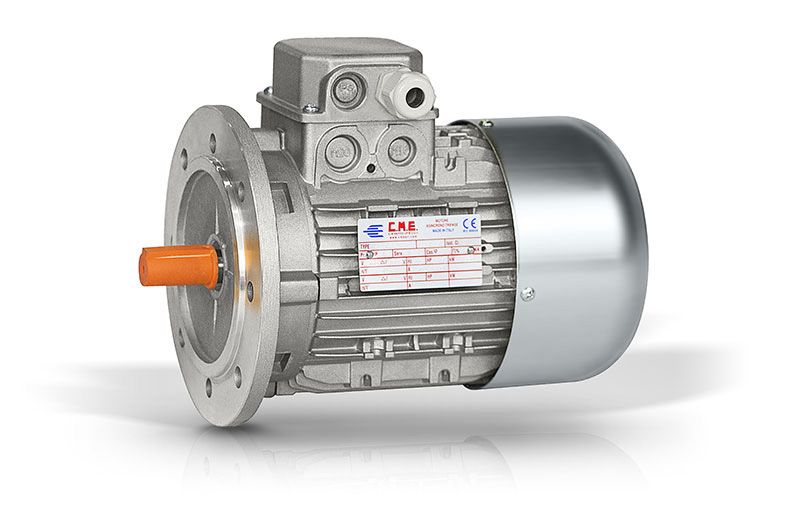

Variable torque motors are motors identified as SC-SNC Va-V, and made with different technical features compared to standard models. Scroll motors make it possible to provide an almost constant power within a predetermined range of variation speed.
They are composed of high resistance short-circuited rotors and appropriately designed windings.

Characteristics:
The SCN-Va-VC series motors provide torques that, starting from a maximum value at startup, decrease linearly with increasing speed, down to the minimum torque and synchronous speed.

The SC series motors are designed to operate in the speed range between 200-1200 rpm for the 4-pole version and 130-800 rpm for the 6-pole version (100-650 rpm for the 8-pole version).

The SCN series motors, on the other hand, are designed to operate in the speed range between 0 and 1200 rpm for the 4-pole version, 0-800 rpm for the 6-pole version, and 0-650 rpm for the 8-pole version.

In the case of SCN motors operating at speeds other than “ZERO” (locked rotor), the reported torques can be increased by following the instructions in the diagrams.

Transmission Determination and Motor Selection

The torques indicated in the tables are intended for continuous service in a working environment with ambient temperatures not exceeding 40°C. Particular attention should be paid to the possible coupling of the motor to transmission components such as reducers or other parts.

It is recommended to carry out these couplings using an elastic joint; where this is not possible, it should be considered that the motor shaft temperature can, in some cases, reach a temperature of 90°C.

Variants
It is possible to manufacture the SC-SCN Va-V series slip-ring motors in all construction forms provided for by national standards.
It is also possible to manufacture slip-ring motors with different polarities: 4, 6, 8 poles.
They can be produced with the following variants:

thermal probes for integral winding protection;
tachometer dynamo;
encoder placed on the rear;
electromagnetic brakes with static torques greater than that of the motor, with AC or DC power supply through electronic power supplies.

Technical specifications
Slip ring motors are widely used in the field of cable winding machines, winding of metal wires, yarns, adhesive tapes, etc.
They can also be used as a “counterforce” (brake) and in all those applications where it is necessary to guarantee and maintain a constant wire/product tension as the speed varies.

Sliding motors :

4/6/8 Poles, Servo-ventilated Motors

POLES	TYPE	MAX. NOMINAL TORQUE (Nm)	WORKING AREA (R.P.M.)	230V (A)	400V (A)	VOLTAGE REGULATORS	VENTILATION	VENTILATOR SINGLE-PHASE 230V (A)	VENTILATOR THREE-PHASE 400V (A)	WEIGHT Kg
4	SC 63a4	0,2	200 ÷ 1200	0,45	0,26	EA 305	3,5
4	SCN63a4 Va	0,64	0+1200	0,64	0,37	EA 305	AXIAL	0,06		4
4	SCN63b4 Va	0,8	0+1200	1,12	0,65	EA 305	AXIAL	0,06		5
4	SCN71a4 Va	1,3	0+1200	2,08	1,2	EA 305	AXIAL	0,07		6
4	SCN71b4 Va	1,5	0+1200	2,48	1,43	EA 305	AXIAL	0,07		7
4	SCN80a4 Va	2,3	0+1200	3,74	2,16	EA 305	AXIAL	0,11		9
4	SCN80b4 Va	3	0+1200	4	2,3	EA 305	AXUAL	0,11		10,5
4	SCN90S4 Va	4,5	0+1200	4,18	2,4	EA 305	AXIAL	0,13		13,5
4	SCN90L4 Va	6	0+1200	5,37	3,1	EA 305	AXIAL	0,13		15,5
4	SCN100La4 Va	6,5	0+1200	5,71	3,3	EA 305	AXIAL	0,13		20
4	SCN100L4 Va	8,5	0+1200	7,15	4,13	EA 307	AXIAL	0,13		20
4	SCN112M4 Va	13,5	0+1200	12,2	7,05	EA 310	AXIAL	0,1		36
4	SCN132S4 VC	20	0+1200	14,5	8,35	EA 310	CENTRIFUGAL		1,15	45
4	SCN132M4 VC	25	0+1200	18	10,4	EA 316	CENTRIFUGAL		1,38	56
4	SCN160M4 VC	30	0+1200	18,2	10,5	EA 316	CENTRIFUGAL		1,6	130
4	SCN160ML4 VC	40	0+1200	24,3	1	EA 325	CENTRIFUGAL		1,6	145
4	SCN160L4 VC	50	0+1200	33,5	19,4	EA 325	CENTRIFUGAL		2,6	170
6	SCN71a6 Va	1,2	0+800	1,9	1,1	EA 305	AXIAL	0,07		7
6	SCN71b6 Va	1,5	0+800	2,2	1,27	EA 305	AXIAL	0,07		7,6
6	SCN80a6 Va	3	0+800	3,4	1,97	EA 305	AXIAL	0,11		9
6	SCN80b6 Va	4	0+800	4,53	2,62	EA 305	AXIAL	0,11		10,6
6	SCN90S6 Va	5,8	0+800	4,8	2,8	EA 305	AXIAL	0,13		13
6	SCN90L6 Va	8	0+800	6,6	3,82	EA 305	AXIAL	0,13		16,4
6	SCN100La6 Va	9	0+800	6.9	4,0	EA 305	AXIAL	0,13		20
6	SCN100L6 Va	11	0+800	8.4	4.85	EA 307	AXIAL	0,13		23
6	SCN112M6 Va	18	0+800	10,4	6,0	EA 310	AXIAL	0,1		36,2
6	SCN132S6 Vc	22	0+800	16	9,2	EA 316	CENTRIFUGAL		1,15	45
6	SCN132M6 Vc	33	0+800	24	13.8	EA 316	CENTRIFUGAL		1,38	56
8	SCN71a8 Va	1,2	0+650	1,9	1,1	EA 305	AXIAL	0,07		7
8	SCN71b8 Va	1,5	0+650	2.2	1,27	EA 305	AXIAL	0,07		7,6
8	SCN80a8 Va	3	0+650	2,9	1,67	EA 305	AXIAL	0,11		9
8	SCN80b8 Va	4	0+650	3,67	2,12	EA 305	AXIAL	0,11		10,6
8	SCN90S8 Va	5,8	0+650	4.22	2,44	EA 305	AXIAL	0,13		13
8	SCN90L8 Va	8	0+650	5,47	3,16	EA 305	AXIAL	0,13		16,4
8	SCN100La8 Va	9	0+650	6,4	3,7	EA 305	AXIAL	0,13		20
8	SCN100L8 Va	11	0+650	7.1	4,1	EA 305	AXIAL	0,13		23
8	SCN112M8 Va	18	0+650	10,7	6,2	EA 307	AXIAL	0,1		36,2
8	SCN132S8 Vc	22	0+650	13,8	8	EA 310	CENTRIFUGAL		1,15	45
8	SCN132M8 Vc	33	0+650	20	11.5	EA 316	CENTRIFUGAL		1,38	56

ASK US FOR INFORMATION

Sliding motors :

4/6/8 poles Self-ventilated Motors

POLES	TYPE	MAX. NOMINAL TORQUE (Nm)	WORKING AREA (R.P.M.)	230V (A)	400V (A)	VOLTAGE REGULATORS	WEIGHT Kg
4	SC 63a4	0,2	200 ÷ 1200	0,45	0,26	EA 305	3,5
4	SC 63b4	0,25	200 ÷ 1200	0,52	0,3	EA 305	4
4	SC 71a4	0,4	200 ÷ 1200	0,64	0,37	EA 305	6
4	SC 71b4	0,5	200 ÷ 1200	0,79	0,46	EA 305	6,5
4	SC 80a4	0,7	200 ÷ 1200	0,73	0,42	EA 305	8,5
4	SC 80b4	0,9	200 ÷ 1200	0,87	0,5	EA 305	10
4	SC 90S4	1	200 ÷ 1200	1,04	0,6	EA 305	12,5
4	SC 90L4	1,3	200 ÷ 1200	1,21	0,7	EA 305	15
4	SC100La4	1,4	200 ÷ 1200	1,26	0,73	EA 305	17
4	SC 100L4	1,8	200 ÷ 1200	1,55	0,9	EA 305	22
6	SC 71a6	0,4	130 ÷ 800	0,52	0,3	EA 305	6,5
6	SC 71b6	0,5	130 ÷ 800	0,7	0,4	EA 305	7
6	SC 80a6	0,9	130 ÷ 800	1,04	0,6	EA 305	8,5
6	SC 80b6	1,2	130 ÷ 800	1,2	0,7	EA 305	10
6	SC 90S6	1,3	130 ÷ 800	1,07	0,62	EA 305	12
6	SC 90L6	1,7	130 ÷ 800	1,38	0,80	EA 305	20
6	SC100La6	2	130 ÷ 800	1,5	0,87	EA 305	20
6	SC 100L6	2,3	130 ÷ 800	1,73	1	EA 305	22,5
8	SC 71a8	0,4	100 ÷ 650	0,59	0,34	EA 305	6,5
8	SC 71b8	0,5	100 ÷ 650	0,70	0,4	EA 305	7
8	SC 80a8	0,9	100 ÷ 650	0,87	0,5	EA 305	8,5
8	SC 80b8	1,2	100 ÷ 650	1,1	0,64	EA 305	10
8	SC 90S8	1,3	100 ÷ 650	0,95	0,55	EA 305	12
8	SC 90L8	1,7	100 ÷ 650	1,16	0,67	EA 305	16
8	SC 100La8	2	100 ÷ 650	1,39	0,80	EA 305	20
8	SC 100L8	2,3	100 ÷ 650	1,49	0,86	EA 305	22,5

ASK US FOR INFORMATION
